Mining & CrushersJaw Crusher

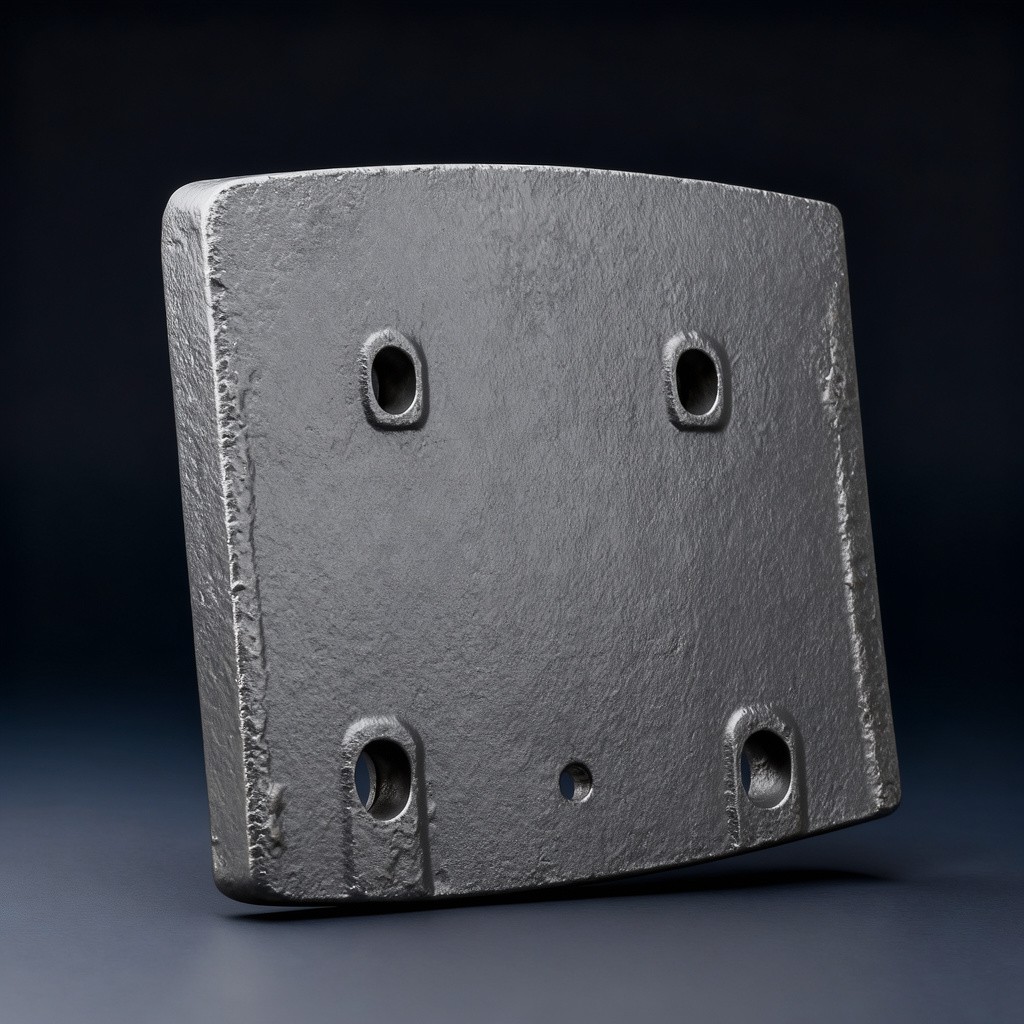

Side plates / cheek plates (jaw crusher side liners)
White iron option: extremely hard (wear-resistant) but brittle – suitable only where impact energy is low. Mn steel: tough and work-hardening – better for high impact. Selection depends on feed material hardness and fragmentation.
Specifications
Material
Hadfield Mn steel ASTM A128 Gr B-2 / Gr C; Chrome-Moly White Iron (Cr26 or Cr28) for lower impact / high abrasion
Material Class
HadfieldWhite IronMn Steel
Applicable Standards
ASTM A128
Service Conditions
abrasionimpact loading
Common Processes
Sand casting; heat treat (Mn: solution anneal; CrMo white iron: stress relieve)
NDT & Inspection
Chemical analysis; microstructure (Mn: austenitic; white iron: carbide distribution); hardness (white iron: 600–700 HBN); PT; dimensional
Typical Specs & Notes
White iron option: extremely hard (wear-resistant) but brittle – suitable only where impact energy is low. Mn steel: tough and work-hardening – better for high impact. Selection depends on feed material hardness and fragmentation.
