Mining & CrushersImpact Crusher / Hammer Mill

Rotor disc / rotor body (impact crusher rotor)

Structural casting – fatigue loading from cyclic impact. Blow bars attached – rotor must be balanced after blow bar installation. Bore: H6/k5 tolerance for shaft.

Request Quote

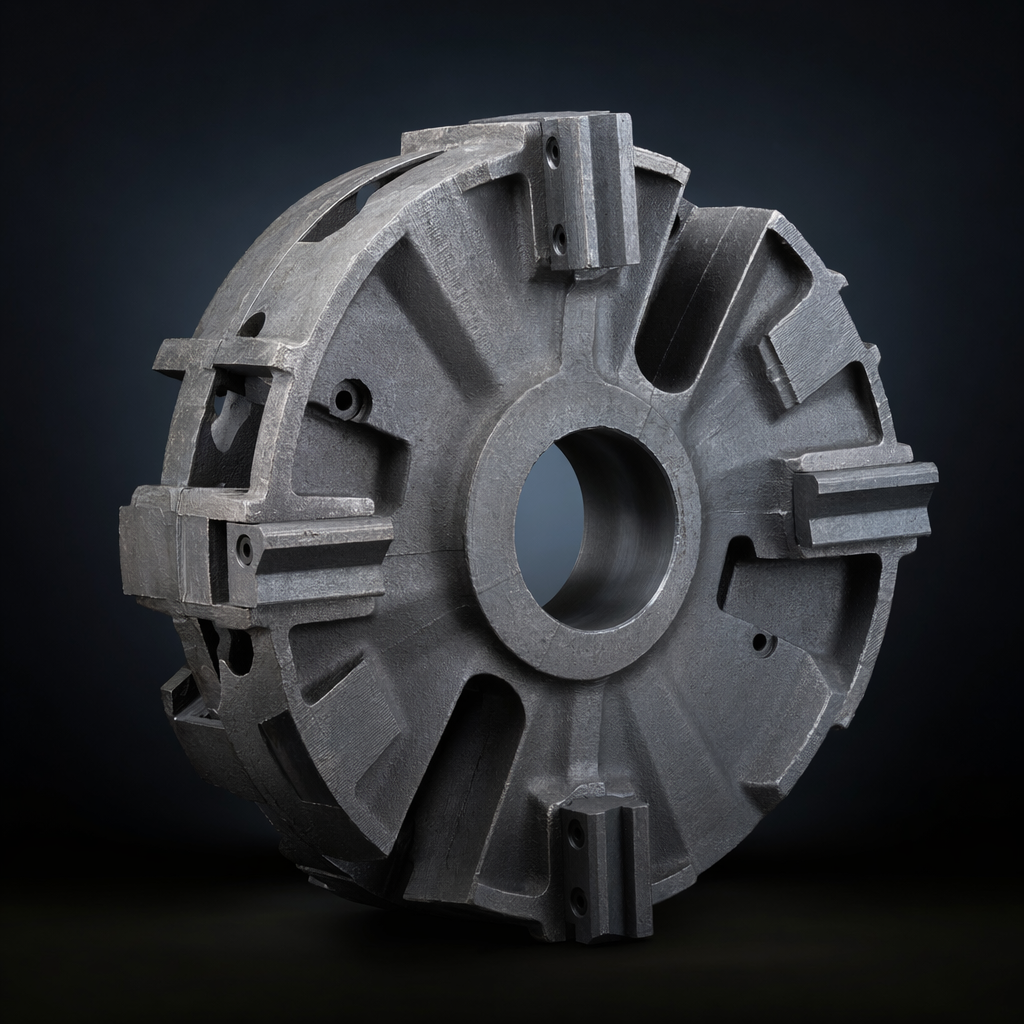

Rotor disc / rotor body (impact crusher rotor) hero

Specifications

Material

Cast Steel ASTM A148 Gr105-85 / Gr120-95 or low alloy (structural – not wear material)

Material Class

Cast SteelLow alloy

Applicable Standards

ASTM A148 Gr105

Service Conditions

impact loading

Common Processes

Resin sand / no-bake; Q&T

NDT & Inspection

UT (Level 1–2); MT; dimensional (bore, face runout); hardness; dynamic balance (assembled rotor)

Typical Specs & Notes

Structural casting – fatigue loading from cyclic impact. Blow bars attached – rotor must be balanced after blow bar installation. Bore: H6/k5 tolerance for shaft.

⚠ Caveats

Blow bars attached – rotor must be balanced after blow bar installation.

Need this product?

Submit your quantity and drawing — we'll quote within 48 hours.
