CementKiln Drive & Mechanical

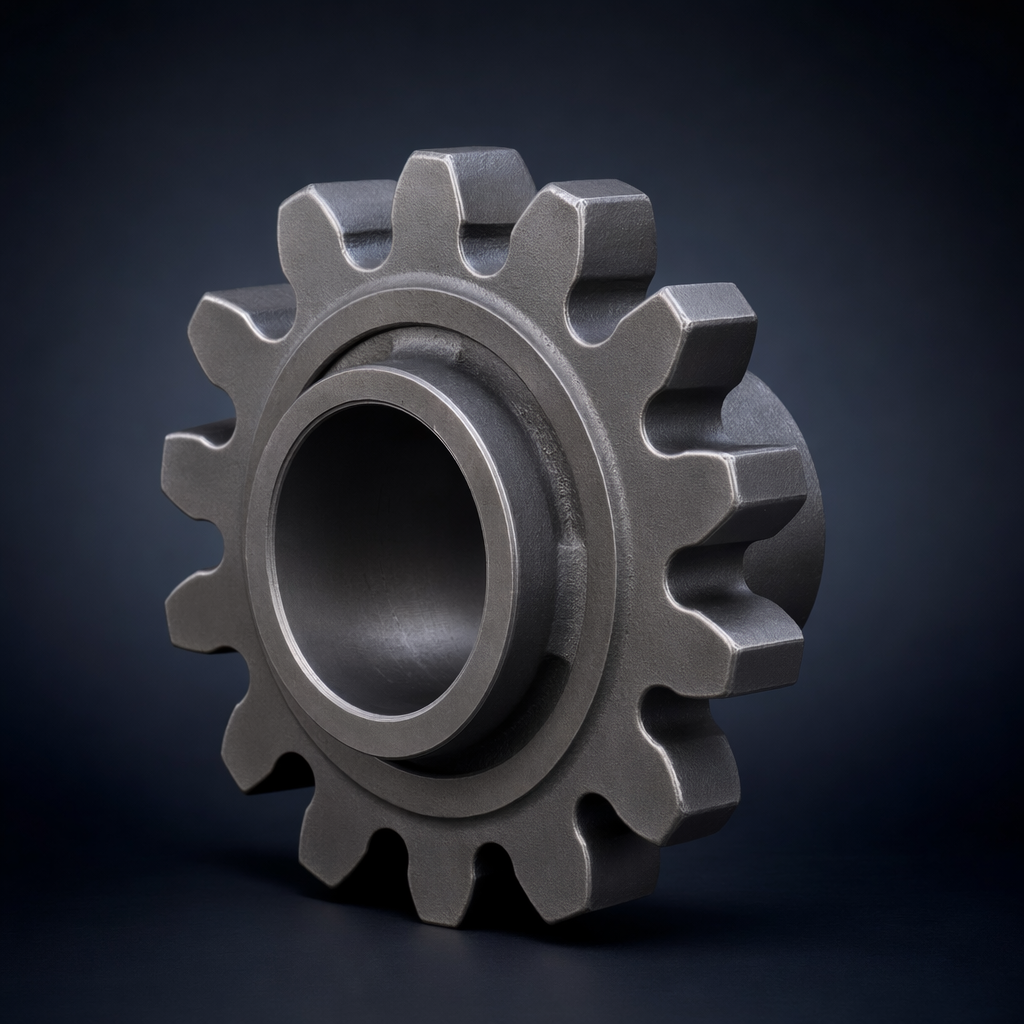

Kiln pinion casting (small gear driving girth gear)
Pinion is the faster, smaller gear – higher tooth contact stress. Some large kilns use FORGED pinions for higher toughness. Smaller kilns: cast pinion acceptable. Hardness: pinion typically harder than girth gear (HB 220–280).
Specifications
Material
Cast Steel ASTM A148 Gr105-85 / Gr120-95; Alloy steel (some prefer forged pinion at large kilns)
Material Class
Cast SteelAlloy Steel
Applicable Standards
ASTM A148 Gr105
Common Processes
Resin sand; Q&T
NDT & Inspection
UT; MT; gear tooth profile CMM; hardness; dimensional
Typical Specs & Notes
Pinion is the faster, smaller gear – higher tooth contact stress. Some large kilns use FORGED pinions for higher toughness. Smaller kilns: cast pinion acceptable. Hardness: pinion typically harder than girth gear (HB 220–280).
Cast To Your Spec
Don't See Your Part? We'll Cast It From Your Drawing.
Send a drawing, sample, or spec and we'll cast it in the right alloy from 25 to 5,000 kg, then machine and inspect it to print. Quote back in 48 hours, no minimum order.
48-hour quote turnaroundNo minimum order quantityIron, carbon, stainless & duplexISO 9001 certified
