Mining & CrushersJaw Crusher

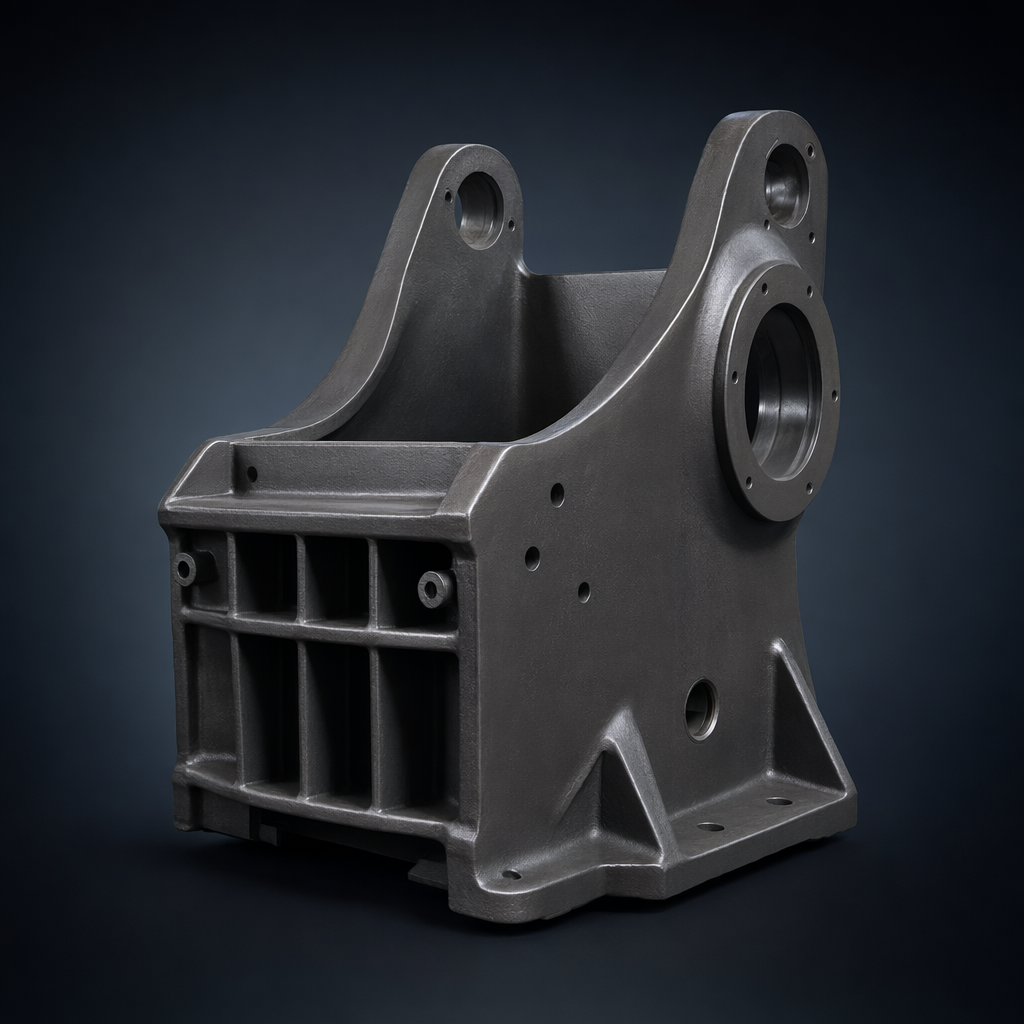

Jaw crusher frame / pitman body casting
Structural frame – fatigue in cyclic crushing load. Heavy section (wall thickness >50mm common). Casting soundness class specified per applicable standard.
Specifications
Material
Cast Steel ASTM A27 Gr70-40 / A148 Gr80-50; Heavy section low-alloy steel
Material Class
Cast SteelAlloy Steel
Applicable Standards
ASTM A27 Gr70
Common Processes
Resin sand / furan no-bake (large, heavy sections)
NDT & Inspection
UT (wall integrity); MT; dimensional; VT; hardness
Typical Specs & Notes
Structural frame – fatigue in cyclic crushing load. Heavy section (wall thickness >50mm common). Casting soundness class specified per applicable standard.
Cast To Your Spec
Don't See Your Part? We'll Cast It From Your Drawing.
Send a drawing, sample, or spec and we'll cast it in the right alloy from 25 to 5,000 kg, then machine and inspect it to print. Quote back in 48 hours, no minimum order.
48-hour quote turnaroundNo minimum order quantityIron, carbon, stainless & duplexISO 9001 certified
