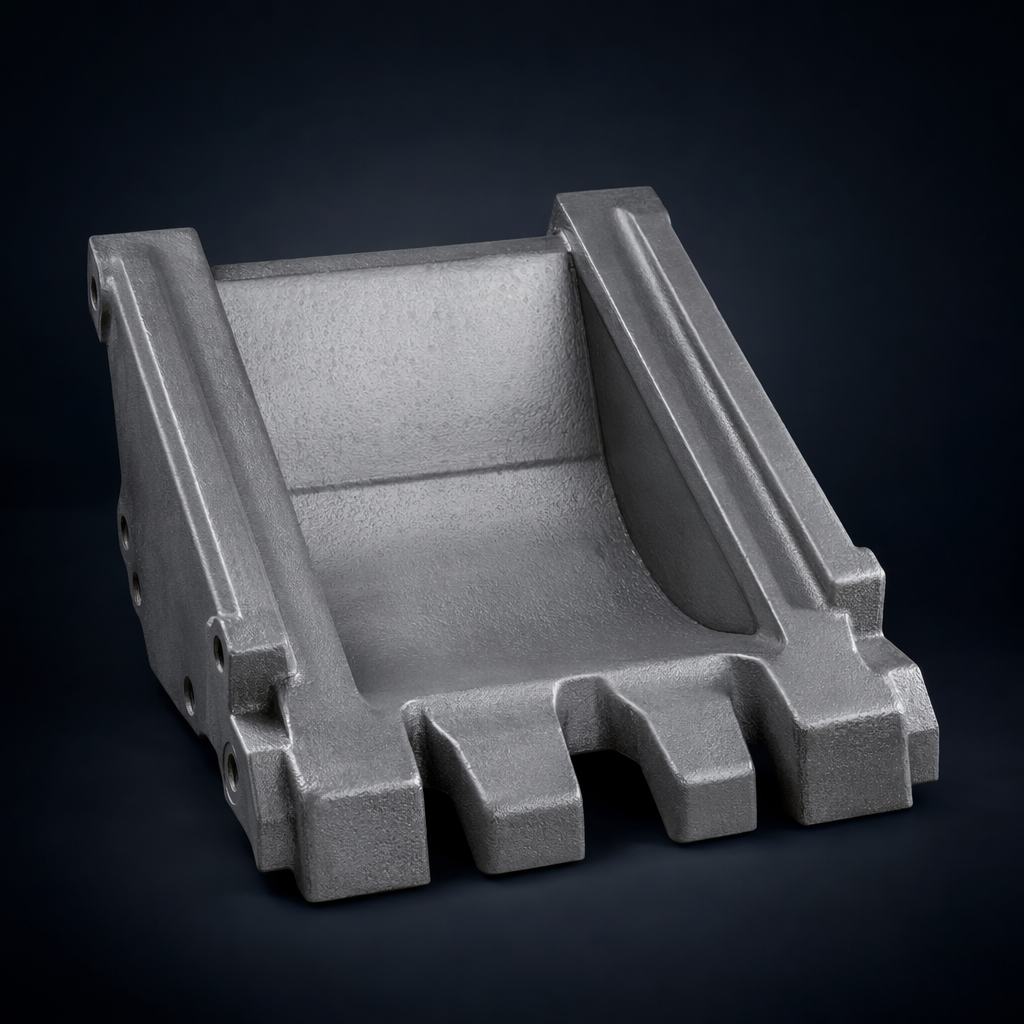

Feeder trough / pan liner (apron / grizzly feeder)
Grizzly feeder fingers: Mn steel (tough, work-hardens). Apron pan liners: material matched to feed type. Bolt-on replaceable design.
Specifications
Material
Hadfield Mn steel Mn13Cr2 / Mn14Cr2; 27%Cr white iron (fine abrasive feed)
Grades
Mn13Cr2;Mn14Cr2
Material Class
HadfieldWhite IronMn Steel
Service Conditions
abrasion
Common Processes
Sand casting (liners); heat treat
NDT & Inspection
Chemical analysis; hardness; dimensional; VT
Typical Specs & Notes
Grizzly feeder fingers: Mn steel (tough, work-hardens). Apron pan liners: material matched to feed type. Bolt-on replaceable design.
