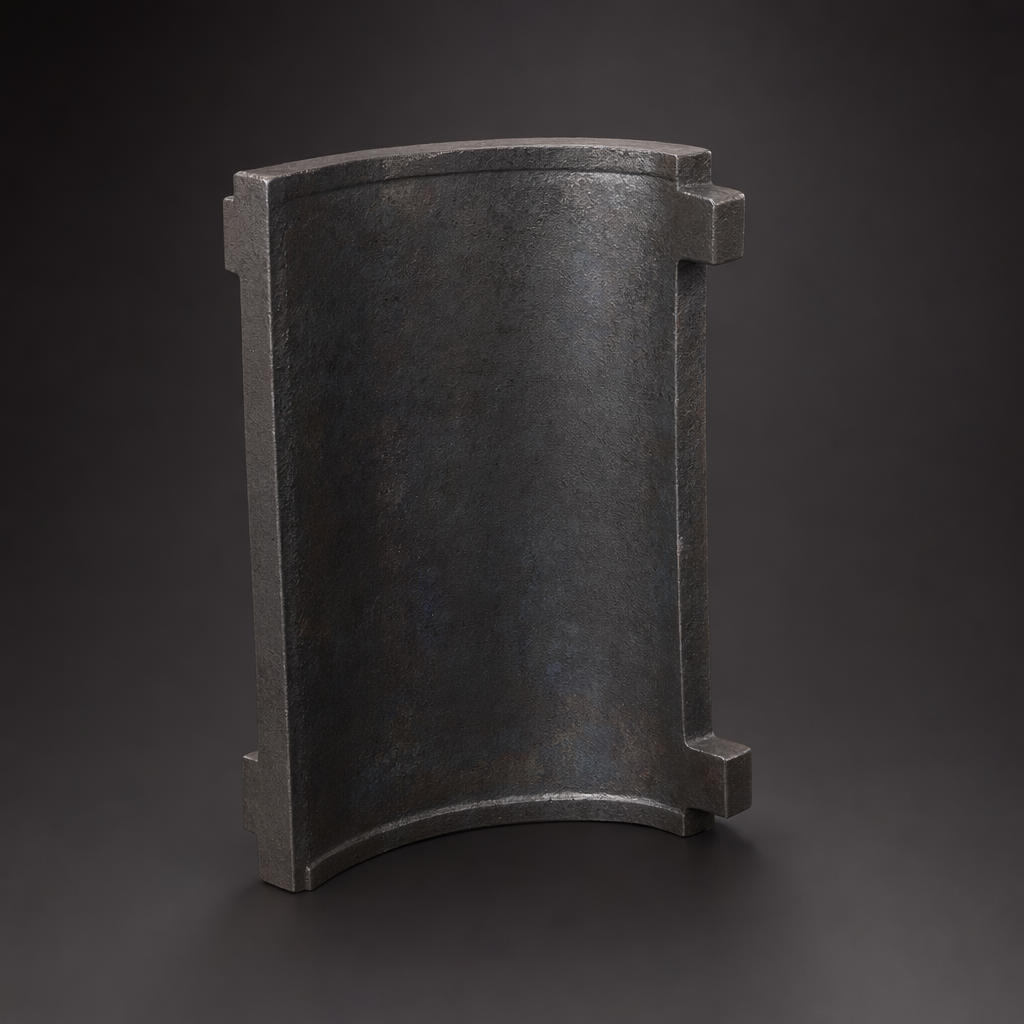

DIP pipe cast segment (preheater cyclone)
Curved cast segment of the DIP PIPE assembly for cement preheater cyclones. Multi-segment vertical tube section (~235mm chord x 510-685mm tall) bolted into the full dip tube. Exposed to 700-900°C hot gas + alkali-laden dust in the preheater string. ∅5420 x 2285mm full assembly available.
Specifications
Material
ASTM A297 HK40 (25Cr-20Ni) heat-resistant cast alloy
Cast To Your Spec
Don't See Your Part? We'll Cast It From Your Drawing.
Send a drawing, sample, or spec and we'll cast it in the right alloy from 25 to 5,000 kg, then machine and inspect it to print. Quote back in 48 hours, no minimum order.
48-hour quote turnaroundNo minimum order quantityIron, carbon, stainless & duplexISO 9001 certified
