Mining & CrushersCone Crusher

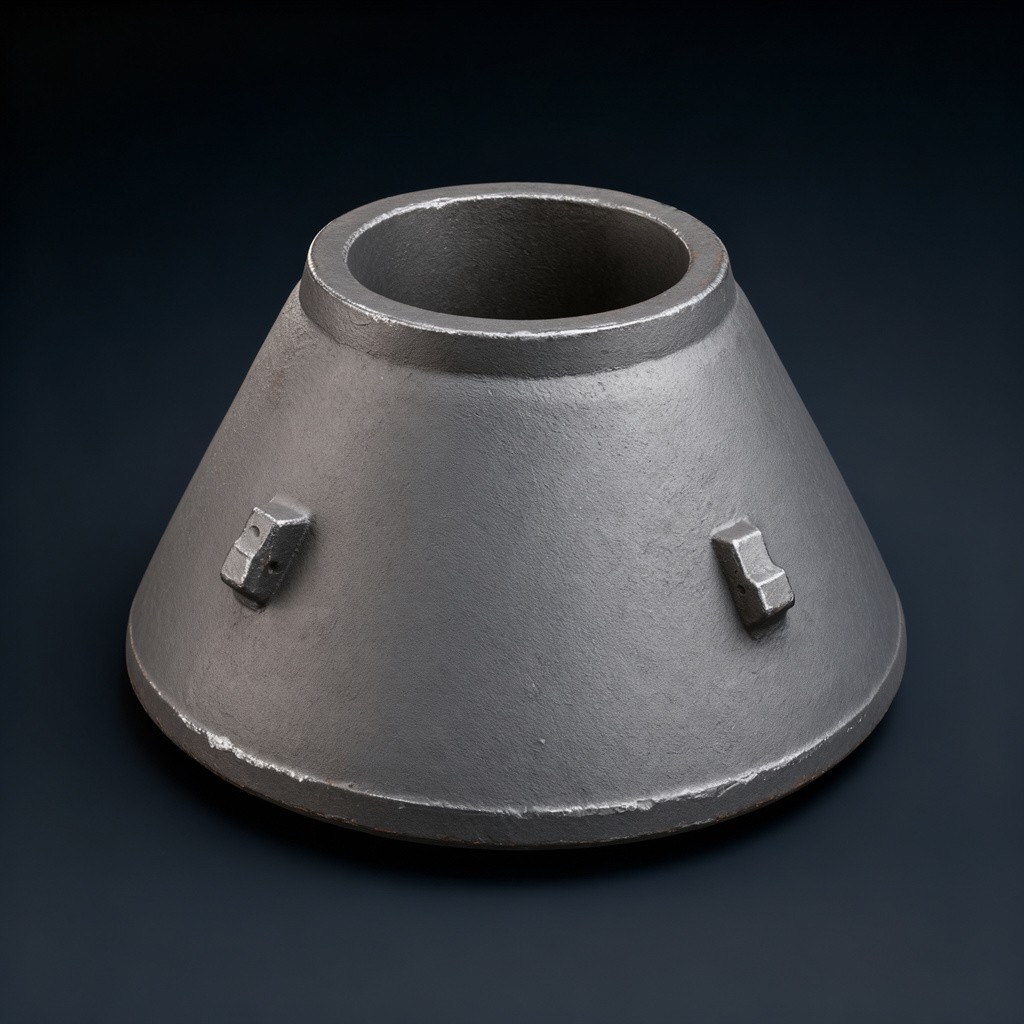

Cone / mantle liner (inner crushing surface – rotating cone)
Profile accuracy critical – crushing gap geometry determines product size. Mn steel work-hardens under compressive impact. Mn18Cr2 suitable for harder rock (granite, basalt). White iron: abrasive low-impact ores (silica sand, limestone).
Specifications
Material
Hadfield Mn steel ASTM A128 Gr B-3 (Mn14Cr2); Mn18Cr2 for medium-hard rock; 27%Cr white iron for highly abrasive low-impact
Grades
Mn14Cr2;Mn18Cr2
Material Class
HadfieldWhite IronMn Steel
Applicable Standards
ASTM A128
Service Conditions
abrasionimpact loading
Common Processes
Sand casting (resin / green); solution anneal for Mn steel (1050°C water quench); stress relieve for white iron
NDT & Inspection
Chemical analysis; microstructure (austenitic Mn / carbide distribution white iron); dimensional (cone profile geometry – crushing gap); VT; impact test (Mn); hardness (white iron)
Typical Specs & Notes
Profile accuracy critical – crushing gap geometry determines product size. Mn steel work-hardens under compressive impact. Mn18Cr2 suitable for harder rock (granite, basalt). White iron: abrasive low-impact ores (silica sand, limestone).
⚠ Caveats
Profile accuracy critical – crushing gap geometry determines product size.
