CementClinker Cooler

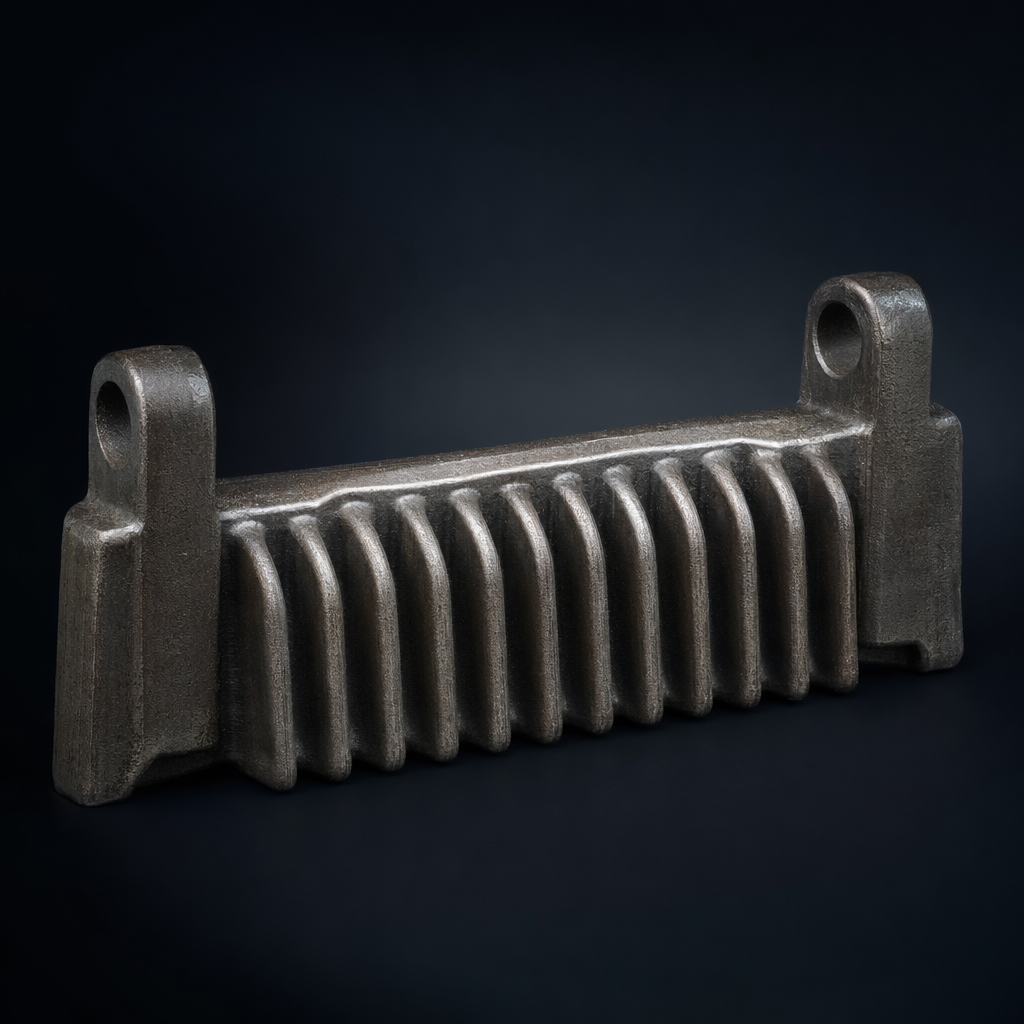

Clinker cooler grate bar / cast bar (roller-type cooler)
Roller cooler design (Polysius REFLEX, Claudius Peters): cast bars on roller frames. Temperature gradient lower than grate but still significant abrasion + thermal cycling.
Specifications
Material
26Cr-1Mo martensitic cast iron; Cr28 white iron; heat-resistant austenitic steel
Material Class
White IronHeat-resistant
Service Conditions
abrasion
OEM References
Polysius
Common Processes
Sand casting; heat treat
NDT & Inspection
Chemical analysis; VT; dimensional; hardness
Typical Specs & Notes
Roller cooler design (Polysius REFLEX, Claudius Peters): cast bars on roller frames. Temperature gradient lower than grate but still significant abrasion + thermal cycling.
