CementRaw Materials Handling & Crushing

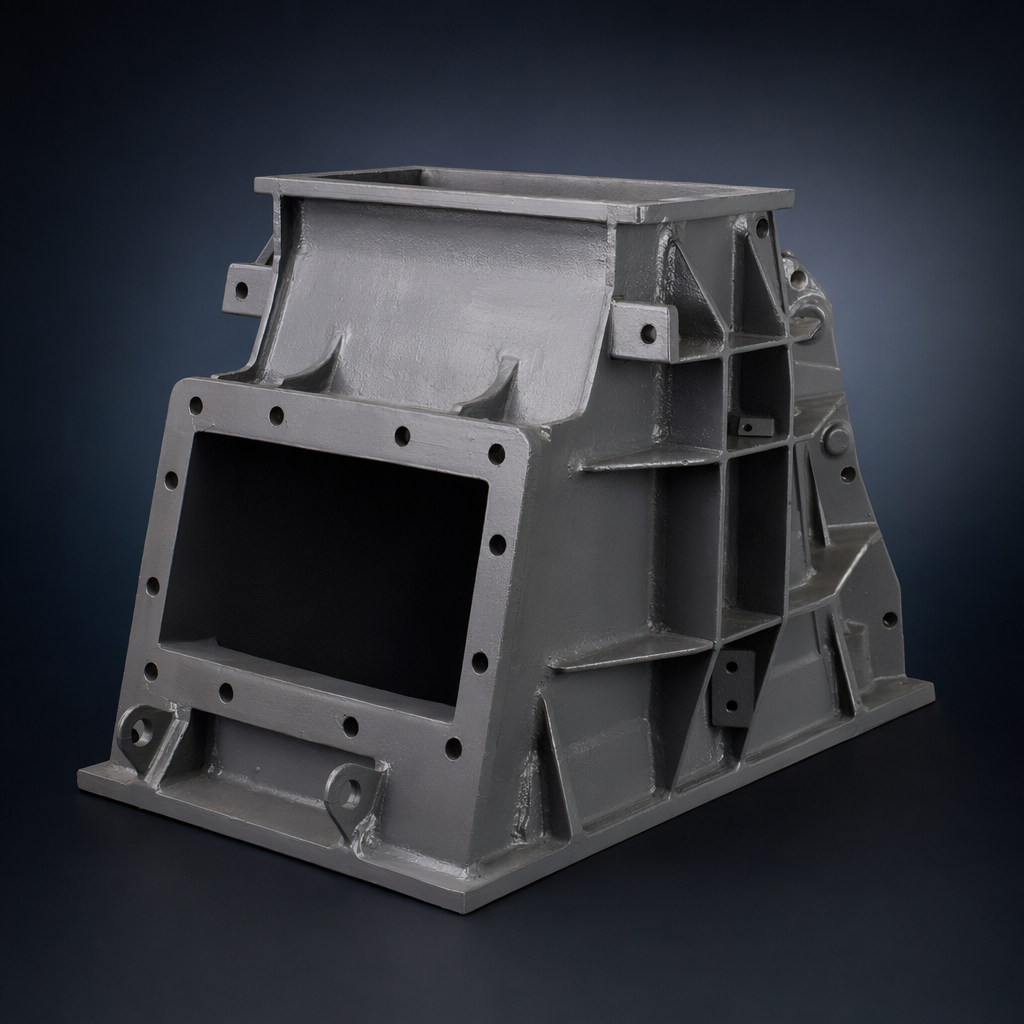

Bucket elevator boot / head section castings (raw meal, clinker, cement)

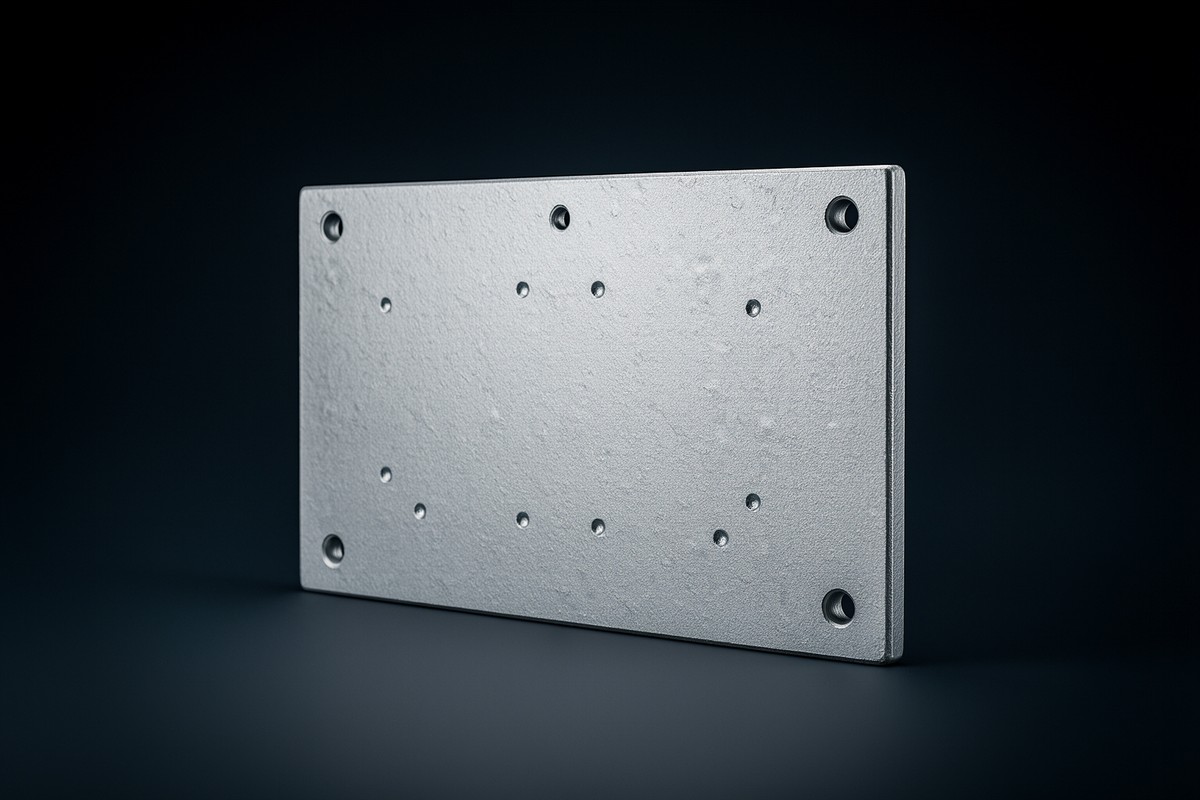

Clinker bucket elevator: high abrasion + elevated temperature (clinker 100–200°C at elevator). Liner plates: replaceable Mn steel or Hi-Cr white iron plates. Boot section: high impact from falling clinker.
Specifications
Material
Cast Steel A27 Gr70-40 (structural); Wear-resistant cast steel / Mn liner for high abrasion zones (clinker)
Material Class
Cast Steel
Service Conditions
high temperatureabrasionimpact loading
Common Processes
Resin sand; heat treat
NDT & Inspection
MT; dimensional; VT
Typical Specs & Notes
Clinker bucket elevator: high abrasion + elevated temperature (clinker 100–200°C at elevator). Liner plates: replaceable Mn steel or Hi-Cr white iron plates. Boot section: high impact from falling clinker.
